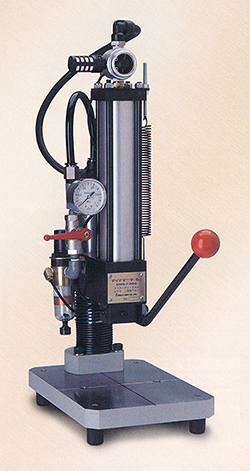

Metallic stamp hammer

■Air hammer for metal stamp and caulking

Hold and hit!

Hammer can hold and hit the work to avoid double strike for metal stamping and to stabilize for caulking.
Speed of the hammer is adujustable by the controller.

Strong driving force!

Comparing to other air cylinder, this hammer has 10times stronger force than conventional type.
There are no energy loss due to loss of supply air and enhaust air.

Mechanism of hitting the work

1. Cap piston covers the work

2. Tool covers the work

3. Hitting ram goes down using power of the compressed air

Size of character: 5mm
Left: Normal air cylinder (inner diam. 100mm) - 0.6MPa
Right: DMM-04B (inner diam. 100mm) - 0.6MPa

Size of character: 3mm
Top: Normal air cylinder(inner diam. 100mm) - 0.6MPa
Bottom: DMM-04B(inner diam. 100mm) - 0.22MPa
