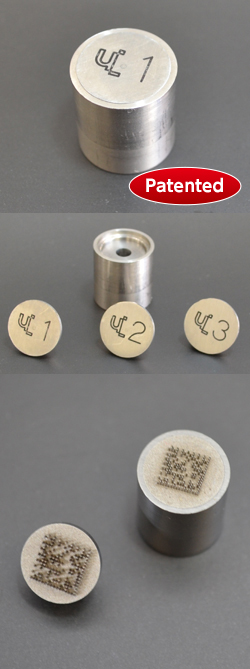

Making insert which is exchangeable within 5 seconds Switch Insert

Making insert which is exchangeable from PL side of the mold

■Exchangeable from PL side　■For injection mold

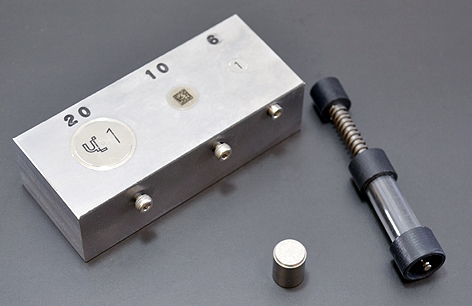

●The marking insert is exchangeable form PL side of the mold by a magnetic jig.

●Wide variety of applications such as logo, lot number, material code ect…

【Specification】
Material: HPM 75
Hardness: HRC35~45
Depth of engraving: ~0.5mm

●Display insert does not rotate

●The switch insert is fixed by a cap bolt

A	B	C	D	L	M	T
10mm	8.8mm	8.8mm	3〜6mm	15mm	M2	2mm
14mm	12mm	12mm	6〜9mm	25mm	M5	5mm

Application

Manufactured date

Manufactured date is marked for traceability control of a product.

Lot number

Lot number is marked to indicate different production line, manufactured country and color of the product.

Material type

Material type is marked when different material is used with the same mold.

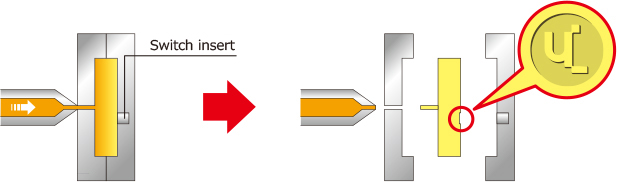

Switch insert in the mold

Switch insert is placed in the mold and engraving of the switch insert is transferred to the molding.

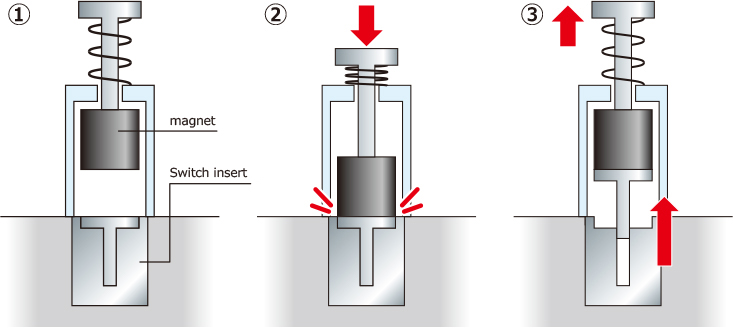

How to replace display insert of switch insert

SettingDisplay insert is inserted.

RemovalDisplay insert is removed by a magnetic jig.

Remove display insert from the back

Press the 2 holes at the back with metal rods to remove display insert.

Case studies

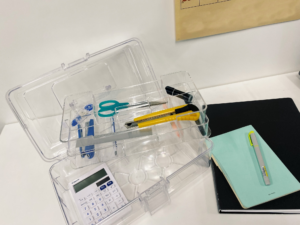

The switch insert helps to improve production of a plastic tooling box. The switch insert is used to change a material display mark. Other injection molding company (automotive, plastic pipe, plastic cabinet etc…) also using a switch insert to improve their production.
