Indexable date insert for high pressured mold.

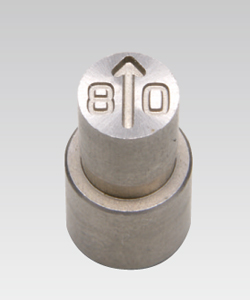

(Photo shows center insert arrow of the date insert.)

Date insert/stamp OP type

■Indexable date insert. The arrow does not rotate during the injection.
■Center insert arrow is exchangeable from plate side.

[Specification/material]
Outer diameter: φ3, φ4, φ5, φ6, φ8, φ10, φ16, φ20
Total length: OP type= 8mm, 10mm, 12mm, 14mm, 16mm
Display mark: year-month, year, month, date and others up to customer request
Material: SUS420

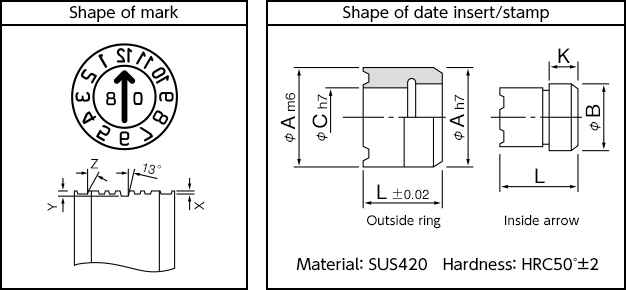

Dimension & specification Display mark & price Customer request form

How to embed the date insert/stamp
and replace How to exchange inner insert

Indexable date insert for high pressured mold.

Date insert/stamp OP type

■Indexable date insert. The arrow does not rotate during the injection. ■Center insert arrow is exchangeable from plate side.

■Indexable date insert. The arrow does not rotate during the injection.
■Center insert arrow is exchangeable from plate side.
