Indexable and front removable center insert arrow for easy maintenance!

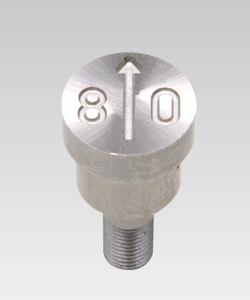

(Photo shows center insert arrow of the date insert.)

Date insert/stamp UL type

■Center insert arrow is removable at the parting line without removing outer insert from the mold.

■The arrow is pointed accurately because of indexable structure.

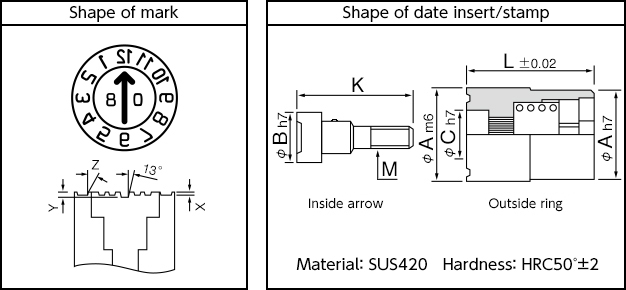

[Specification/material]
Outer diameter: φ4, φ5, φ6, φ8, φ10, φ12, φ16
Total length: 8mm, 10mm, 12mm, 14mm
Display mark: year-month, year, month, date and others up to customer request
Material: SUS420

Dimension & specification Display mark & price Customer request form

How to embed the date insert/stamp
and replace How to exchange inner insert
