Inside Arrow Rotated by Air Pressure

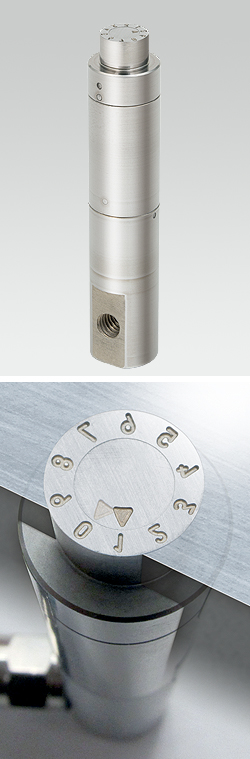

Automatic Date Insert

■Exchanged from plate side   ■For injection mold

●The inside arrow is rotated using air pressure, allowing you to rotate the date insert without stopping the molding machine.

●For automatic date insert with 12mm outer diameter, the inside arrow can be replaced directly from the PL surface - no mold disassembly required, reducing time and cost significantly.

Automatic Rotation Mechanism

The internal mechanism lifts and rotates the inside arrow using air pressure. It automatically points to the next number. Unlike conventional systems, no screwdriver is needed - just press a switch to rotate, dramatically reducing operation time.

[Specifications / Material]
Engraving depth 0.22mm
Draft angle 25°
The length of moves up during rotation < 1.5 mm
Material SUS420
Hardness HRC 50-53
Maximum temperature (main unit) 250℃
Maximum temperature (cylinder section) 150℃
Air supply pressure 0.65MPa ~ 0.7MPa

0-9 and 1-12 (Month)

●Air piping connection:
　Side hole type / Bottom hole type
●Inner arrow is replaceable

Part A B C D E F G H
mm 12 8 10 65 15 7.5 6.6 30.5
Tolerance h7 m6 ±0.02 ±0.02 - - - -
Part A B C D E F G H
mm 12 8 10 58 4 2 2 30.5
Tolerance h7 m6 ±0.02 ±0.02 - - - -

1-31 (Day)

●Air piping connection: Side hole type
●Inner insert is not replaceable

Part A B C D E F G
mm 18 16 32.5 61 15 7.5 6.6
Tolerance h7 m6 ±0.02 ±0.02 - - -

How to Replace the Inner Arrow (for 0-9 and 1-12)

While the inner arrow is raised by air pressure, the inner arrow is rotated and removed using a screwdriver.

Control Method

●Controlled by air pressure

Using a push-button switch or foot pedal, air flow is controlled to rotate the date mark.

Applications of Automatic Date Insert

Date insert is rotated without stopping injection machine

Conventionally you need to use screw driver to rotate date insert.

Problem

• Molding machines must be stopped to rotate date marks.

Advantages of Automatic date insert

• Push-button or foot pedal operation enables quick switching without stopping the molding machine.
• Prevents changes in molding conditions.
Improve Molding Efficiency

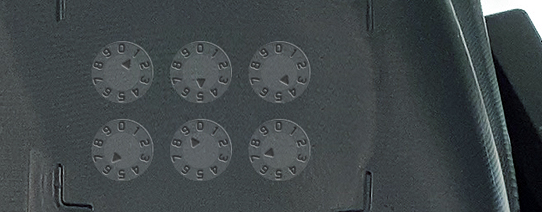

Rotating of Multiple Date inserts

With multi-cavity molds, all date marks must be manually rotated.

Problem

• It takes time to rotate date inserts.

Advantage of automatic date insert

• Use branched pneumatic fittings to rotate all date marks simultaneously with a single push.
Reduce rotating time

Air Piping Required
